Description:

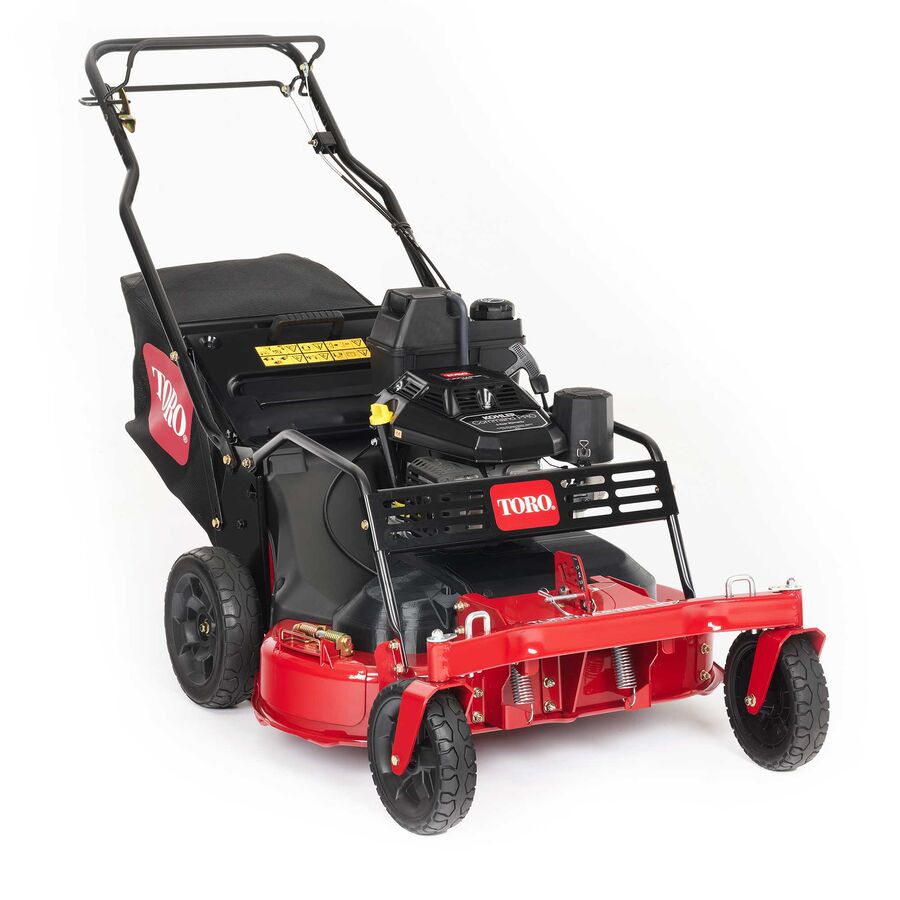

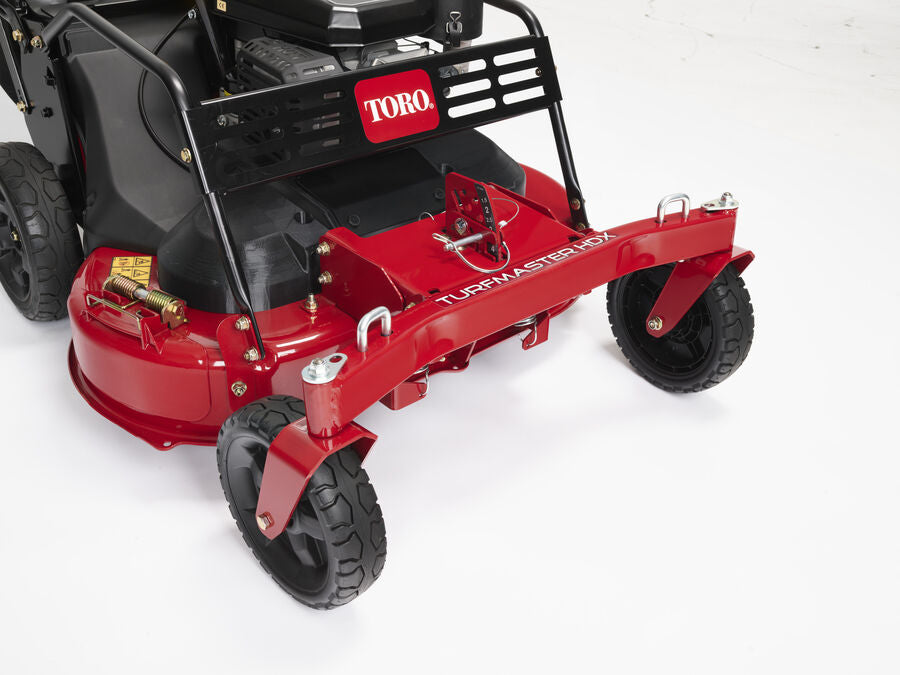

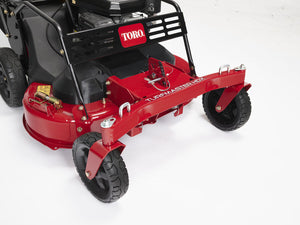

The TurfMaster® HDX 30” with casters delivers the legendary power, durability, and cut quality pros demand—now with even greater maneuverability. Its rugged 30” deck and Kohler CV224 Command Pro engine power through tough conditions, while the caster front end navigates tight spaces with ease and locks in for precision on open terrain. Built for all-day productivity, it features a two-point height of cut system for quick adjustments, a blade brake clutch for fast stops and restarts, and a large one-gallon gas tank for fewer refuels. The split deck belt cover streamlines maintenance, providing quick access for cleaning and servicing to keep the mower running at peak efficiency. As the lightest 30” caster commercial-grade mower, it’s tough, agile, and ready to tackle any job.

Features:

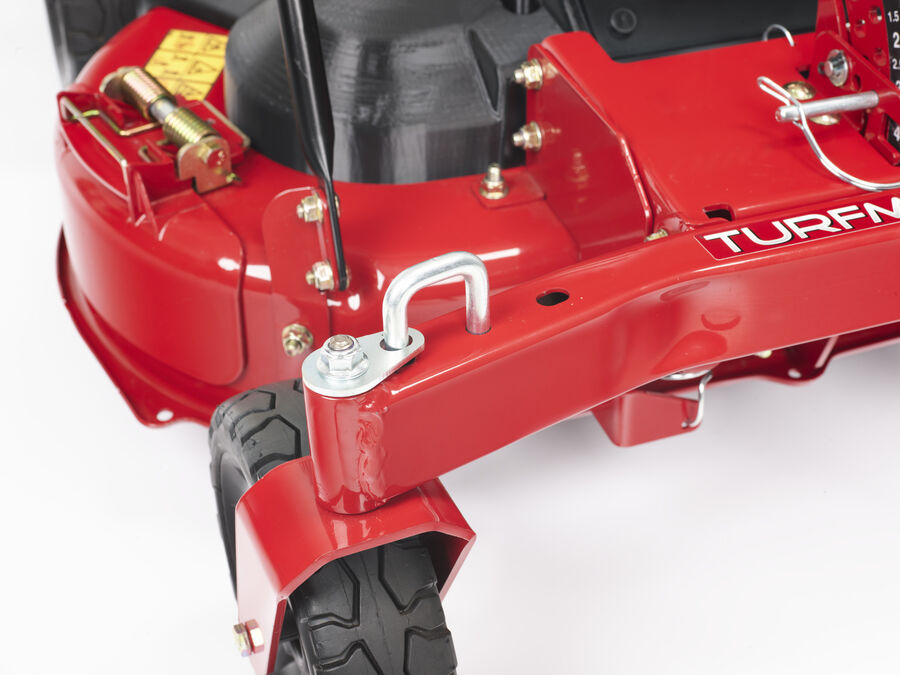

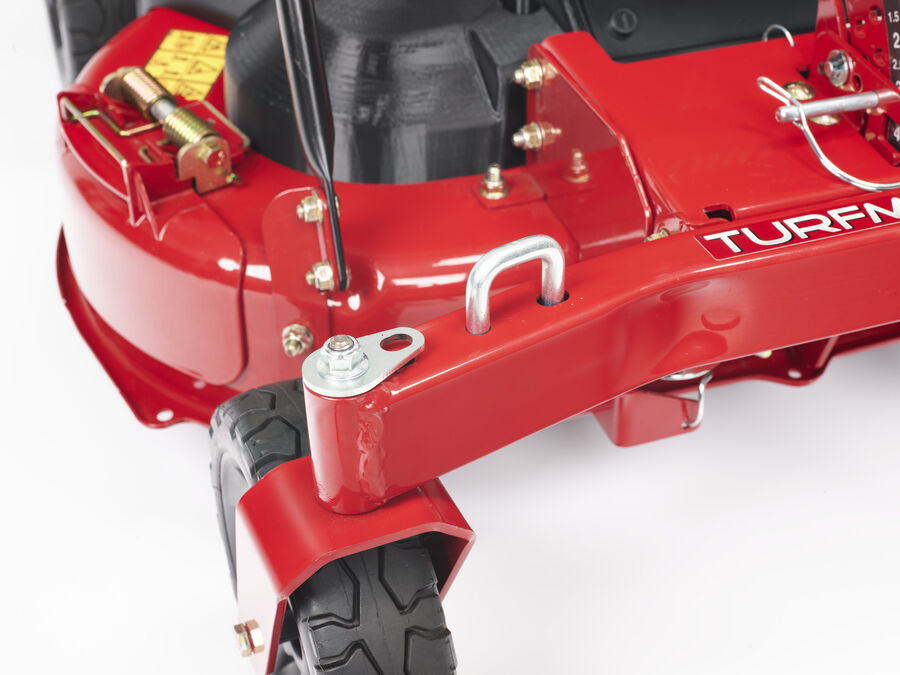

• 2-Point Height of Cut
• Heavy-duty 2-point height of cut (HOC) system makes it easy to adjust deck height. No need to walk around the mower to adjust four different levers.
• Large 1-Gallon Gas Tank
• A larger gas tank means longer mowing time between refueling.
• Blade Brake Clutch (BBC)
• Allows the operator to disengage the blades without shutting down the engine. Saves time restarting when you have to step away momentarily to move obstacles or empty the bag.
• Commercial-Grade Wheels
• Rubber tires with co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs.

Specifications:

• Product Type: Walk Behind Mower
• Product Use: Commercial
• Engine Brand: Kohler
• Engine Model: CV224 Command Pro
• Engine Displacement: 224 cc
• Fuel Type: Gasoline
• Fuel Capacity: 1 gal / 3.8 L / 4 qt
• Start Type: Pull Cord
• Transmission: Heavy Duty Self-Propelled
• Forward Mowing Speed: Up to 4.0 mph / 6.4 kph

Cutting System

• Deck Size: 30 in / 76 cm
• Deck Material: 13-Gauge Steel Deck with Cast Aluminum Frame
• Blade Design: 0.135 in / 0.343 cm Thick Steel
• Blade Engagement: Blade Brake Clutch (BBC)
• Blade Tip Speed: 18,000 ft/min / 5,486 m/min
• Number of Blades: 2
• Height of Cut: 1.5 - 5.0 in / 3.8 - 12.7 cm (in 0.5 in / 1.3 cm increments)
• Cutting Options: Mulch (standard), Bag (standard), Side Discharge (standard)
• Bagger Capacity: 2.5 bushels

Wheels & Spindles

• Front Tires: 9 in x 2 in (22.8 cm x 5.0 cm), Rubber w/ Co-Polymer Caster Wheels
• Rear Tires: 10.5 in x 3 in (26.6 cm x 7.6 cm), Rubber w/ Co-Polymer Wheels
• Spindle Housing: Die Cast Spindle, 17 mm Cold Formed Spindle Shafts

Dimensions & Compliance

• Weight: 195 lbs / 88.5 kg
• Box Dimensions: 41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm
• CARB Compliant: Yes
